4 Row Core Aluminum Radiator Shroud Fan Relay for 1966-1977 Ford Bronco Base Custom Northland Ranger Roadster Sport Wagon L6 2.8L 3.3L V8 4.7L 5.0L 1967 1968 1969 1970 1971 1972 1973
Product details
| Management number | 229612003 | Release Date | 2026/05/31 | List Price | $151.60 | Model Number | 229612003 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Radiator:Row Core: 4 Row CoreCore Size: 19.21" x 18.23"Overall Size: 20.87" X 25.59"Inlet: 1.50"outlet: 1.75"Transmission Oilcooler: YESFITMENT:For Ford Bronco Base L6 3.3L 74For Ford Bronco Base V8 5.0L 68-74For Ford Bronco Base -- -L 73For Ford Bronco Base L6 2.8L 69-72For Ford Bronco Base V8 4.7L 66-68For Ford Bronco Custom V8 5.0L 75-77For Ford Bronco Northland V8 5.0L 75For Ford Bronco Ranger V8 5.0L 75For Ford Bronco Roadster L6 2.8L 69For Ford Bronco Roadster V8 5.0L 68-69For Ford Bronco Roadster V8 4.7L 68For Ford Bronco Sport V8 5.0L 75-77For Ford Bronco Wagon L6 3.3L 73For Ford Bronco Wagon V8 5.0L 68-73For Ford Bronco Wagon L6 2.8L 69-72For Ford Bronco Wagon V8 4.7L 68Fan Specification:16" FanVoltage: DC 12 VoltsMaximum Fan CFM: 2150 cfmWattage: 120 WattageThickness (in): 2.500"Number of Blades: 10 S-Type bladesMaximum Fan RPM: 2,250 rpmAmp Draw: 10 ampsThermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator.
- đăProduct specificationăRows: 4 | Overall Size: 20.87" X 25.59"| Core Size: 19.21" x 18.23" | Inlet Hose Connection: 1 1/2" Drivers Side | Outlet Hose Connection: 1 3/4" Passenger Side | Transmission Oil Cooler: Ï26*255*1/8-27NPT(T) | Transmission: Automatic
- đăVehicle CompatibilityăThis radiator is compatible with 1966-1977 Ford Bronco Base Custom Northland Ranger Roadster Sport Wagon L6 2.8L 3.3L V8 4.7L 5.0L 1967 1968 1969 1970 1971 1972 1973 1974 1975 1976.
- đăHigh-quality materialsăIt is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold workability and strength.
- đăExcellent designăThe new design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine.

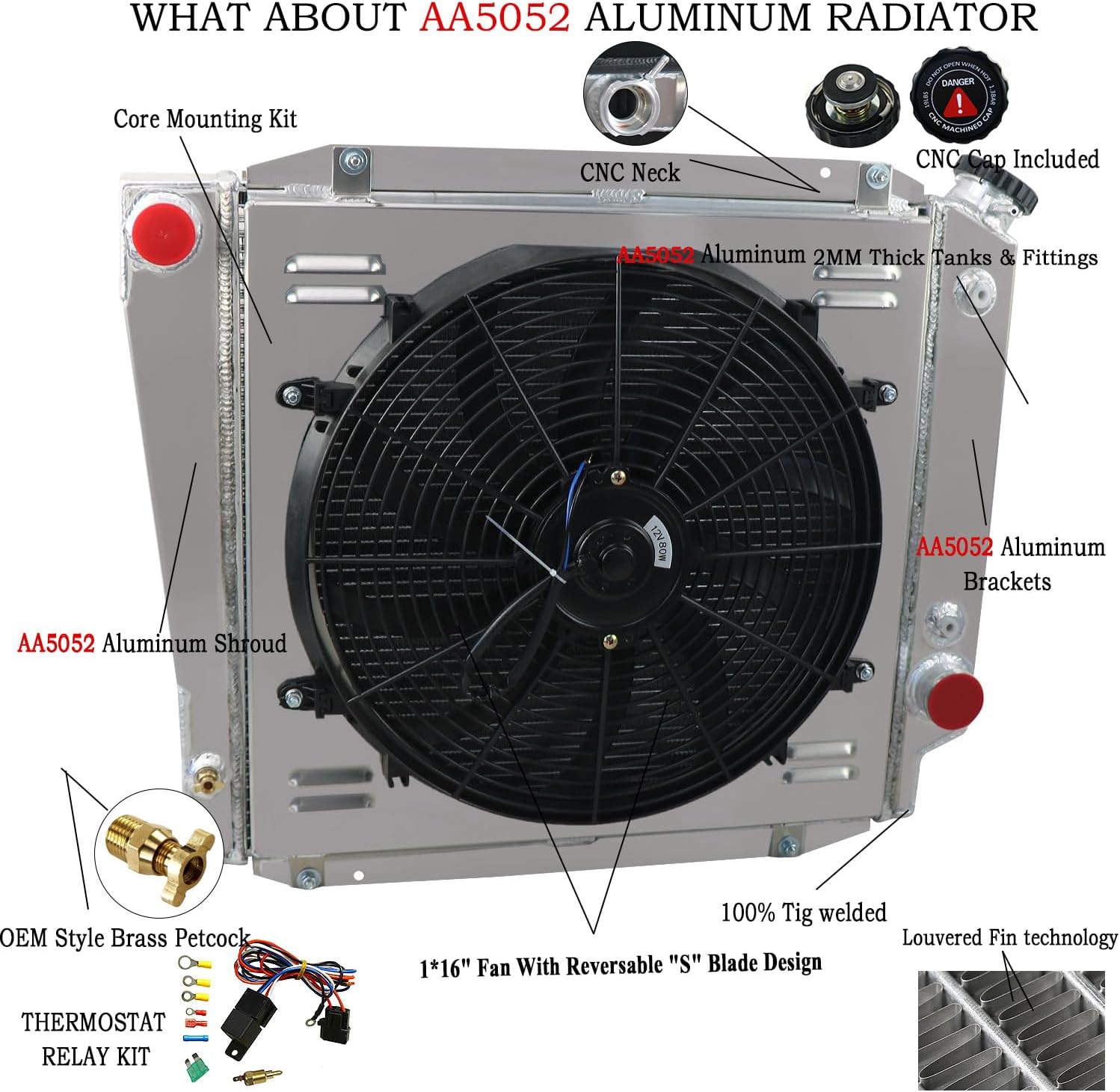

- đăPackage Includeă1 x 4-Row AA5052 Aluminum Radiator, 1 x CNC Machined Radiator Cap, 1 x AA5052 Aluminum Shroud, 1 x 16" Fans (Includes mounting kits), 1 x Thermostat Relay Kit
| UPC | 781933393093 |
|---|---|
| ASIN | B0BGP432VM |
| Wattage | 120 watts |
| Brand Name | Enignelooc |
| Part Number | Enignelooc-343 |
| Coil Voltage | 12 Volts |
| Manufacturer | Enignelooc |
| Mounting Type | Panel Mount |
| Connector Type | Wire Connector |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Warranty Description | 2 year warranty |
| Maximum Switching Current | 10 Amps |
| Maximum Switching Voltage | 12 Volts |
